华为防火墙配置指南

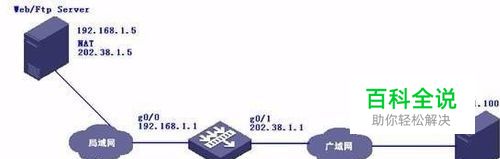

操作方法

• 01

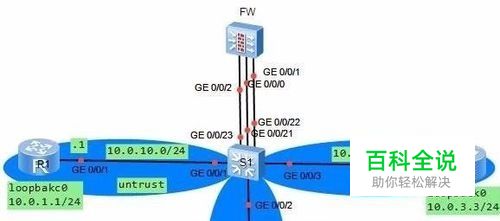

  步骤一.基本配置与IP编址 首先给三个路由器配置地址信息。 [Huawei]sysname R1 [R1]interface g0/0/1 [R1-GigabitEthernet0/0/1]ip add 10.0.10.124 [R1-GigabitEthernet0/0/1]desc this portconnect to S1-G0/0/1 [R1-GigabitEthernet0/0/1]interfaceloopback0 [R1-LoopBack0]ip add 10.0.1.1 24 [R1-LoopBack0]q [Huawei]sysname R2 [R2]interface g0/0/1 [R2-GigabitEthernet0/0/1]ip add 10.0.20.224 [R2-GigabitEthernet0/0/1]desc this portconnect to S1-G0/0/2 [R2-GigabitEthernet0/0/1]interfaceloopback0 [R2-LoopBack0]ip add 10.0.2.2 24 [R2-LoopBack0]q [Huawei]sysname R3 [R3]interface g0/0/1 [R3-GigabitEthernet0/0/1]ip add 10.0.30.324 [R3-GigabitEthernet0/0/1]desc this portconnect to S1-G0/0/3 [R3-GigabitEthernet0/0/1]interfaceloopback0 [R3-LoopBack0]ip add 10.0.3.3 24 [R3-LoopBack0]q 给防火墙配置地址时，G0/0/1配置10.0.20.254/24. [SRG]sysname FW 13:06:03 2014/07/08 [FW]interface g0/0/1 13:06:30 2014/07/08 [FW-GigabitEthernet0/0/1]ip add 10.0.20.25424 13:07:01 2014/07/08 [FW-GigabitEthernet0/0/1]desc this portconnect to S1-G0/0/22 13:07:52 2014/07/08 [FW-GigabitEthernet0/0/1]interface g0/0/0 13:08:23 2014/07/08 [FW-GigabitEthernet0/0/0]dis this 13:08:31 2014/07/08 # interface GigabitEthernet0/0/0 alias GE0/MGMT ipaddress 192.168.0.1 255.255.255.0 dhcpselect interface dhcpserver gateway-list 192.168.0.1 # return [FW-GigabitEthernet0/0/0]undo ip add 13:08:42 2014/07/08 Info: The DHCP server configuration on thisinterface will be deleted. [FW-GigabitEthernet0/0/0]display this 13:08:46 2014/07/08 # interface GigabitEthernet0/0/0 alias GE0/MGMT # return [FW-GigabitEthernet0/0/0]ip add 10.0.10.25424 13:09:29 2014/07/08 [FW-GigabitEthernet0/0/0]desc this portconnect to S1-G0/0/21 13:10:05 2014/07/08 [FW-GigabitEthernet0/0/0]interface G0/0/2 13:10:15 2014/07/08 [FW-GigabitEthernet0/0/2]ip add 10.0.30.25424 13:10:28 2014/07/08 [FW-GigabitEthernet0/0/2]desc this portconnect to S1-G0/0/23 13:10:53 2014/07/08 [FW-GigabitEthernet0/0/2]q



• 02

  交换机上需要按照需求定义vlan [Huawei]sysname S1 [S1]vlan batch 11 to 13 Info: This operation may take a fewseconds. Please wait for a moment...done. [S1]interface g0/0/1 [S1-GigabitEthernet0/0/1]port link-typeaccess [S1-GigabitEthernet0/0/1]port default vlan11 [S1]interface g0/0/2 [S1-GigabitEthernet0/0/2]port link-typeaccess [S1-GigabitEthernet0/0/2]port default vlan12 [S1-GigabitEthernet0/0/2]interface g0/0/3 [S1-GigabitEthernet0/0/3]port link-typeaccess [S1-GigabitEthernet0/0/3]port default vlan13 [S1-GigabitEthernet0/0/3]interface g0/0/21 [S1-GigabitEthernet0/0/21]port link-typeaccess [S1-GigabitEthernet0/0/21]port default vlan11 [S1-GigabitEthernet0/0/21]interface g0/0/22 [S1-GigabitEthernet0/0/22]port link-typeaccess [S1-GigabitEthernet0/0/22]port default vlan12 [S1-GigabitEthernet0/0/22]interface g0/0/23 [S1-GigabitEthernet0/0/23]port link-typeaccess [S1-GigabitEthernet0/0/23]port default vlan13



• 03

  步骤二.将接口配置到安全区域 防火墙默认有四个区域，分别是“local”、“trust"、“untrust”、“dmz”。 实验中我们用到“trust”、'untrust"、“dmz”三个区域。将G0/0/0加入untrust区域、g/0/0/2加入dmz和g/0/0/1加入trust。 [FW]firewall zone trust 13:45:31 2014/07/08 [FW-zone-trust]dis this 13:45:35 2014/07/08 # firewall zone trust setpriority 85 addinterface GigabitEthernet0/0/0 # return [FW-zone-trust]undo add inter [FW-zone-trust]undo add interface g0/0/0 13:46:01 2014/07/08 [FW-zone-trust]add interface g0/0/1 13:46:22 2014/07/08 [FW-zone-trust]firewall zone untrust [FW-zone-untrust]add interface g0/0/0 13:47:24 2014/07/08 [[FW-zone-untrust]firewall zone dmz 13:48:06 2014/07/08 [FW-zone-dmz]add interface g0/0/2 13:48:13  2014/07/08 [FW-zone-dmz]q



• 04

  默认情况下，防火墙并不允许出local区域外的其它区域之间进行通信。为了便于验证配置的正确性，我们首先将防火墙区域之间的默认过滤规则配置为允许所有区域间通信。配置完成后在FW设备上测试连通性。 [FW]firewall packet-filter default permitall 13:51:19 2014/07/08 Warning:Setting the default packetfiltering to permit poses security risks. You are advised to configure the securitypolicy based on the actual data flows. Are you sure you want to continue?[Y/N]y [FW]ping -c 1 10.0.10.1 13:51:56 2014/07/08 PING 10.0.10.1: 56  data bytes,press CTRL_C to break Reply from 10.0.10.1: bytes=56 Sequence=1 ttl=255 time=90 ms ---10.0.10.1 ping statistics --- 1packet(s) transmitted 1packet(s) received 0.00% packet loss round-trip min/avg/max = 90/90/90 ms [FW]ping -c 1 10.0.20.2 13:52:08 2014/07/08 PING 10.0.20.2: 56  data bytes,press CTRL_C to break Reply from 10.0.20.2: bytes=56 Sequence=1 ttl=255 time=400 ms ---10.0.20.2 ping statistics --- 1packet(s) transmitted 1packet(s) received 0.00% packet loss round-trip min/avg/max = 400/400/400 ms [FW]ping -c 1 10.0.30.3 13:52:18 2014/07/08 PING 10.0.30.3: 56  data bytes,press CTRL_C to break Reply from 10.0.30.3: bytes=56 Sequence=1 ttl=255 time=410 ms ---10.0.30.3 ping statistics --- 1packet(s) transmitted 1packet(s) received 0.00% packet loss round-trip min/avg/max = 410/410/410 ms



• 05

  步骤三.配置静态路由，实现网络的连通性         在R2和R3上配置缺省路由，在FW上配置明确的静态路由，实现三个loopback0接口之间的通信。R1无需定义缺省路由，原因是其作为internet设备，他不需要知道内部和DMZ区域的私有网络信息。 [R2]ip route-static 0.0.0.0 0 10.0.20.254 [R3]ip route-static 0.0.0.0 0 10.0.30.254 [FW]ip route-static 10.0.1.0 24 10.0.10.1 13:58:26 2014/07/08 [FW]ip route-static 10.0.2.0 24 10.0.20.2 13:58:40 2014/07/08 [FW]ip route-static 10.0.3.0 24 10.0.30.3 13:58:52 2014/07/08 在防火墙上测试与10.0.1.0、10.0.2.0、10.0.3.0之间的连通性。 [FW]ping -c 1 10.0.1.1 14:00:18 2014/07/08 PING 10.0.1.1: 56  data bytes,press CTRL_C to break Reply from 10.0.1.1: bytes=56 Sequence=1 ttl=255 time=80 ms ---10.0.1.1 ping statistics --- 1packet(s) transmitted 1packet(s) received 0.00% packet loss round-trip min/avg/max = 80/80/80 ms [FW]ping -c 1 10.0.2.2 14:00:25 2014/07/08 PING 10.0.2.2: 56  data bytes,press CTRL_C to break Reply from 10.0.2.2: bytes=56 Sequence=1 ttl=255 time=170 ms ---10.0.2.2 ping statistics --- 1packet(s) transmitted 1packet(s) received 0.00% packet loss round-trip min/avg/max = 170/170/170 ms [FW]ping -c 1 10.0.3.3 14:00:29 2014/07/08 PING 10.0.3.3: 56  data bytes,press CTRL_C to break Reply from 10.0.3.3: bytes=56 Sequence=1 ttl=255 time=110 ms ---10.0.3.3 ping statistics --- 1packet(s) transmitted 1packet(s) received 0.00% packet loss round-trip min/avg/max = 110/110/110 ms 目前配置下，所有区域之间可以通讯，不被检查。但是由于当前尚未定义NAT，外部区域不能与内部和DMZ区域相互访问。



• 06

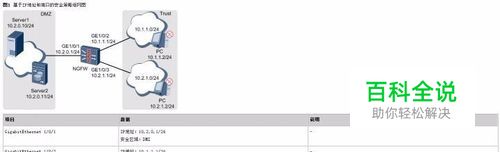

  步骤四.配置区域间的安全过滤          配置从Trust区域的部分网段10.0.2.3发往Untrust区域的数据包被放行。从Untrust区域发往DMZ目标服务器10.0.3.3的telnet请求被放行。 [FW]firewall session link-state check [FW]policy interzone trust untrust outbound [FW-policy-interzone-trust-untrust-outbound]policy0 14:06:57 2014/07/08 [FW-policy-interzone-trust-untrust-outbound-0]policysource 10.0.2.0 0.0.0.255 14:07:18 2014/07/08 [FW-policy-interzone-trust-untrust-outbound-0]actionpermit 14:07:31 2014/07/08 [FW-policy-interzone-trust-untrust-outbound-0]q 14:07:40 2014/07/08 [FW-policy-interzone-trust-untrust-outbound]q 14:07:40 2014/07/08 ]policy interzone dmz untrust inbound 14:09:01 2014/07/08 [FW-policy-interzone-dmz-untrust-inbound]policy0 14:09:08 2014/07/08 [FW-policy-interzone-dmz-untrust-inbound-0]policydestination 10.0.3.3 0 14:09:37 2014/07/08 [FW-policy-interzone-dmz-untrust-inbound-0]policyservice service-set telnet [FW-policy-interzone-dmz-untrust-inbound-0]actionpermit 14:09:55 2014/07/08 [FW-policy-interzone-dmz-untrust-inbound-0]q 14:09:55 2014/07/08



• 07

  步骤五.配置Easy-Ip，实现Trust区域到Untrust区域的访问。        配置使用Easy-IP，进行NAT源地址转换。并且将NAT与接口进行绑定。 [FW-nat-policy-interzone-trust-untrust-outbound]policy0 14:14:00 2014/07/08 [FW-nat-policy-interzone-trust-untrust-outbound-0]policysource 10.0.2.0 0.0.0.2 55 14:14:26 2014/07/08 [FW-nat-policy-interzone-trust-untrust-outbound-0]actionsource-nat 14:14:37 2014/07/08 [FW-nat-policy-interzone-trust-untrust-outbound-0]easy-ipg0/0/0 14:14:51 2014/07/08 [FW-nat-policy-interzone-trust-untrust-outbound-0]q 配置完成后，验证Trust区域与Untrust区域之间的访问是否正常。 <R2>ping 10.0.1.1 PING 10.0.1.1: 56  data bytes,press CTRL_C to break Request time out Request time out Request time out Request time out Request time out ---10.0.1.1 ping statistics --- 5packet(s) transmitted 0packet(s) received 100.00% packet loss <R2>ping -a 10.0.2.2 10.0.1.1 PING 10.0.1.1: 56  data bytes,press CTRL_C to break Reply from 10.0.1.1: bytes=56 Sequence=1 ttl=254 time=220 ms Reply from 10.0.1.1: bytes=56 Sequence=2 ttl=254 time=100 ms Reply from 10.0.1.1: bytes=56 Sequence=3 ttl=254 time=100 ms Reply from 10.0.1.1: bytes=56 Sequence=4 ttl=254 time=120 ms Reply from 10.0.1.1: bytes=56 Sequence=5 ttl=254 time=440 ms ---10.0.1.1 ping statistics --- 5packet(s) transmitted 5packet(s) received 0.00% packet loss round-trip min/avg/max = 100/196/440 ms 注意，这里直接测试与10.0.1.1之间的连通性，显示不通。使用扩展ping，指定了发送数据包的源地址是10.0.2.2后，实现了连通性。原因是，直接发送数据包到10.0.1.1时，数据包的源地址到10.0.1.1时，数据包的源地址为10.0.20.2，该地址不属于NAT转换的客户端地址范围。 步骤六.将内网服务器10.0.3.3发布出去 配置内网服务器10.0.3.3的telnet服务，映射到地址10.0.10.20 [FW]nat server protocol tcp global10.0.10.20 telnet inside 10.0.3.3 telnet 在R3上开启Telnet功能，并在R1上测试，测试时需要注意，对外发布的地址为10.0.10.20，所以R1对10.0.3.3访问时，访问的目标地址为10.0.10.20。 [R3]user-interface vty 0 4 [R3-ui-vty0-4]authentication-mode password Please configure the login password(maximum length 16):16 [R3-ui-vty0-4]set authentication password ? cipher  Set the password withcipher text [R3-ui-vty0-4]set authentication passwordcip [R3-ui-vty0-4]set authentication passwordcipher Huawei [R3-ui-vty0-4]user privilege level 3 [R3-ui-vty0-4]q <R1>telnet 10.0.10.20 Press CTRL_] to quit telnet mode Trying 10.0.10.20 ... Connected to 10.0.10.20 ...
