如何在VB程序下生成二维条码

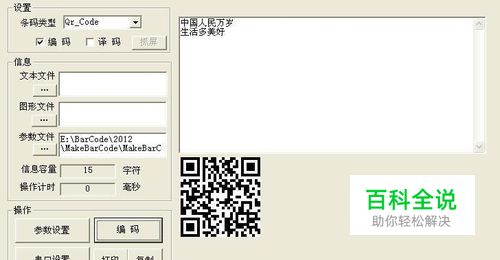

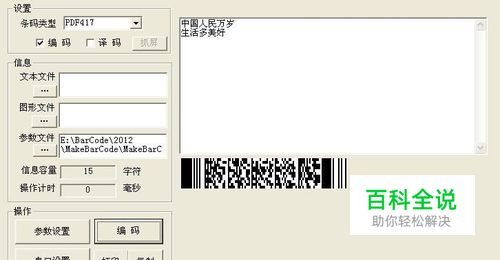

如何在VB程序下生成二维条码,包括PDF417、QrCode、DataMatrix和汉信二维条码,具体步驺如下:
操作方法
- 01

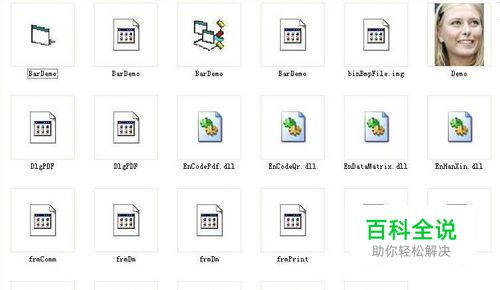

创建VB工程,COPY二维条码动态链接库到您的工程中。您需要引用的动态库有:EnCodePdf.dll,EnCodeQr.dll,EnDataMatrix和EnHanxin.dll。 大家可以参照下图放置DLL和INI的目录位置。
- 02
'动态链接库引用 (说明:下面是所有四种条码的接口引用申明,读者可以适当剪裁) '串口接口 Private Declare FunctionInitRead Lib "EnCodePdf.dll" (ByVal hcallwnd As Long, ByVal pathnameAs String) As Long Private Declare FunctionCloseRead Lib "EnCodePdf.dll" () As Long '生成PDF417接口 Private Declare SubSetPdfConFile Lib "EnCodePdf.dll" (ByVal confile As String) Private Declare FunctionEnPdfText Lib "EnCodePdf.dll" (ByVal txtData As String, ByVal outfileAs String) As String Private Declare FunctionEnCodePdf Lib "EnCodePdf.dll" (ByVal txtfile As String, ByVal outfileAs String) As String Private Declare FunctionMakePdf417 Lib "EnCodePdf.dll" (ByVal txtfile As String, ByValpictfile As String, ByVal otherfile As String, ByVal outfile As String) AsString '生成QrCode接口 Private Declare SubSetQrConFile Lib "EnCodeQr.dll" (ByVal confile As String) Private Declare FunctionEnQrText Lib "EnCodeQr.dll" (ByVal txtData As String, ByVal outfileAs String) As String Private Declare FunctionEnCodeQr Lib "EnCodeQr.dll" (ByVal txtfile As String, ByVal outfileAs String) As String Private Declare FunctionMakeQrCode Lib "EnCodeQr.dll" (ByVal txtfile As String, ByVal pictfileAs String, ByVal otherfile As String, ByVal outfile As String) As String '生成DataMatrix接口 Private Declare SubSetDmConFile Lib "EnDataMatrix.dll" (ByVal confile As String) Private Declare FunctionEnDmText Lib "EnDataMatrix.dll" (ByVal txtData As String, ByValoutfile As String) As String Private Declare FunctionEnDataMatrix Lib "EnDataMatrix.dll" (ByVal txtfile As String, ByValoutfile As String) As String Private Declare FunctionMakeDataMatrix Lib "EnDataMatrix.dll" (ByVal txtfile As String, ByValpictfile As String, ByVal otherfile As String, ByVal outfile As String) AsString '生成HanXin接口 Private Declare SubSetHxConFile Lib "EnHanXin.dll" (ByVal confile As String) Private Declare FunctionEnHxText Lib "EnHanXin.dll" (ByVal txtData As String, ByVal outfileAs String) As String Private Declare FunctionEnCodeHx Lib "EnHanXin.dll" (ByVal txtfile As String, ByVal outfileAs String) As String Private Declare FunctionMakeHanXin Lib "EnHanXin.dll" (ByVal txtfile As String, ByValpictfile As String, ByVal otherfile As String, ByVal outfile As String) AsString 'WAPI接口 Private Declare FunctionSetCurrentDirectory Lib "kernel32" Alias"SetCurrentDirectoryA" (ByVal lpPathName As String) As Long Private Declare FunctionWritePrivateProfileString Lib "kernel32" Alias"WritePrivateProfileStringA" (ByVal lpApplicationName As String,ByVal lpKeyName As Any, ByVal lpString As Any, ByVal lpFileName As String) AsLong Private Declare FunctionGetPrivateProfileInt Lib "kernel32" Alias"GetPrivateProfileIntA" (ByVal lpApplicationName As String, ByVallpKeyName As String, ByVal nDefault As Long, ByVal lpFileName As String) AsLong Private Declare FunctionGetPrivateProfileString Lib "kernel32" Alias"GetPrivateProfileStringA" (ByVal lpApplicationName As String, ByVallpKeyName As Any, ByVal lpDefault As String, ByVal lpReturnedString As String,ByVal nSize As Long, ByVal lpFileName As String) As Long Private Declare FunctionSetWindowLong Lib "user32" Alias "SetWindowLongA" (ByValhwnd As Long, ByVal nIndex As Long, ByVal dwNewLong As Long) As Long Private Declare FunctionSetParent Lib "user32" (ByVal hWndChild As Long, ByVal hWndNewParentAs Long) As Long '生成图像小波压缩接口 'exports from nlcomp.dll 图像压缩函数 Private Declare FunctionSizeDIB Lib "Wcomp.dll" (ByVal oldmap As String, ByVal BmpHeight AsInteger, ByVal BmpWidth As Integer) As Long Private Declare FunctionWcompress Lib "Wcomp.dll" (ByVal infile As String, ByVal outfile AsString, ByVal budget As Long) As Long Private Declare FunctionWdecompress Lib "Wcomp.dll" (ByVal infile As String, ByVal outfile AsString) As Long
- 03
进行条形码制作: 我们在引用API接口后,可以参照下面程序,实现接口调用 程序中txtfile表示文本文件名,binBmpFile表示输入的图像文件名 若需要装载图像可以采用Make开头接口,若不需要则采用En开头接口。 If (txtfile<> "" Or binBmpFile <> "") Then If m_bWorkMode = 1 Then 'PDF417 SetPdfConFile (Edit_ConFileName.Text) If (Edit_ImgFileName.Text <> "") Then strBmpFile = MakePdf417(txtfile, binBmpFile,"", "") Else strBmpFile = EnPdfText(Edit_Source.Text,"") End If ElseIf m_bWorkMode = 2 Then 'Qr_Code SetQrConFile (Edit_ConFileName.Text) If (Edit_ImgFileName.Text <> "") Then strBmpFile = MakeQrCode(txtfile, binBmpFile,"", "") Else strBmpFile = EnQrText(Edit_Source.Text,"") End If ElseIf m_bWorkMode = 3 Then ' DataMatrix SetDmConFile (Edit_ConFileName.Text) If (Edit_ImgFileName.Text <> "") Then strBmpFile = MakeDataMatrix(txtfile,binBmpFile, "", "") Else strBmpFile = EnDmText(Edit_Source.Text,"") End If Else SetHxConFile (Edit_ConFileName.Text) If (Edit_ImgFileName.Text <> "") Then strBmpFile = MakeHanXin(txtfile, binBmpFile,"", "") Else strBmpFile = EnHxText(Edit_Source.Text,"") End If End If
- 04
打开关闭串口: 条码编码控件一般自带串口接收处理接口: InitRead接口是初始化串口 CloseRead接口是关闭串口 If Cmd_OpenComm.Caption = "连接串口" Then Call SetPdfConFile(Edit_ConFileName.Text) If InitRead(Me.hwnd, App.Path + "\") = 1 Then Cmd_OpenComm.Caption = "断开串口" End If Else '关闭串口 If CloseRead() = 1 Then Cmd_OpenComm.Caption = "连接串口" End If End If
- 05
接收条码识读器内容: 串口收到识读器信息后,以键盘消息的形式,触发页面消息。 我们调用FORM下,处理KeyDown事件。 Private Sub Form_KeyDown(KeyCode As Integer, Shift As Integer) Dim FileNo As Integer Dim strTmp As String Dim strBmpFile As String strBmpFile = App.Path & "\temp.bmp" If KeyCode = 255 Then FileNo = FreeFile() Open App.Path & "\temp.txt" For Input As #FileNo Edit_Source.Text = "" Do While Not EOF(FileNo) strTmp = "" Input #FileNo, strTmp Edit_Source.Text = Edit_Source.Text & strTmp & Chr(13) & Chr(10) Loop Close #FileNo If Dir(strBmpFile) <> "" Then Kill (strBmpFile) End If If Dir(App.Path & "\temp.img") <> "" Then If FileLen(App.Path & "\temp.img") > 10 Then Call Wdecompress(App.Path & "\temp.img", strBmpFile) End If End If If Dir(strBmpFile) <> "" Then Image_Bar.Picture = LoadPicture(strBmpFile) Else Image_Bar.Picture = LoadPicture("") End If Cmd_Print.Enabled = False End If End Sub
